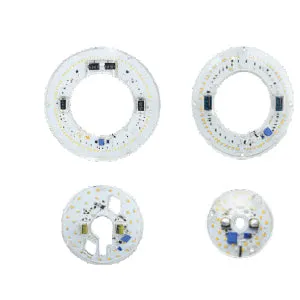

Advantage Environmental Lighting Direct AC LED Retrofit Kit Engines
The simple, efficient LED solution for low-profile, dimmable applications. DirectAC LED Retrofit Kit Engines provide a cost-efficient, reliable solution for wall sconces and ceiling luminaires. These innovative engines eliminate the need for an LED driver, creating a lower profile and simplifying installation. They are available in various power levels from 10-34W, with standard TRIAC/ELV dimming, a range of color temperatures, and CRI up to 90. These cURus and cULus Classified, ENERGY STAR® listed kits include installation hardware and labels, and are suitable for open or fully enclosed luminaires.
Features
- AC Direct Drive on integrated LED board
- Universal voltage (120-277V) input
- Very low flicker, meets Title 24 requirements
- Smooth TRIAC/ELV dimming down to 10%
- High voltage barrier and 5VA rated lens
- Lower energy costs, longer lifespan than fluorescent
- Standard mounting holes for easy installation
Specification
Input Voltage | UNV (120-277VAC) |
Beam Angle | 120° |
Operating Ambient Temperature Range (Ta) | -35°C to 50°C |
Estimated Lumen Maintenance (at Max Tc | L70 > 54,000hrs / L90 = 17,000hrs |
Flicker Percentage | <30% |
Safety/Compliance | cULus Classified, cURus, RoHS, ENERGY STAR Luminaire 2.0 Listed |
PCB Material / Connector Qty / Em. Connection | MCPCB (for superior thermal management) |
Warranty | 5 Years @ Max Tc from the date of manufacture |
