Lewmar has developed a Patent Pending hybrid gypsy, which uses a metal anchor warp core together with a polymer chain wheel. This combination offers a lightweight and quiet solution that ensures a smooth operation, while still offering the long-life durability of the traditional metal gypsy
The polymer chain wheel allows the anchor rode chain to bed-in, creating a jump free quieter operation, while the metal anchor warp core grips the warping during deployment and retrieval of the anchor rode such as with a conventional gypsies
Offers a maximum pull of 1175kg, for boats 30ft to 48ft.
Lewmar has developed a Patent Pending hybrid gypsy, which uses a metal anchor warp core together with a polymer chain wheel. This combination offers a lightweight and quiet solution that ensures a smooth operation, while still offering the long-life durability of the traditional metal gypsy
The polymer chain wheel allows the anchor rode chain to bed-in, creating a jump free quieter operation, while the metal anchor warp core grips the warping during deployment and retrieval of the anchor rode such as with a conventional gypsies
Deck Unit

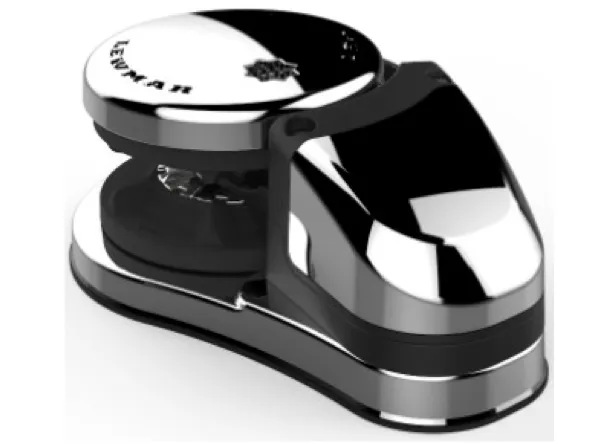

The Lewmar VX windlass range offers a new entry-level windlass product, giving the end user a stylish yet functional product at a competitive price point. The extensive testing that has been done to ensure that the VX2/3 can outperform its rivals in the entry level market.
Key Features
- Manual clutch release
- Stylish stainless steel & composite construction
- Same footprint as V2/3 model
- Supplied as an extended kit which includes: deck unit, motor gearbox, solenoid, rocker switch, circuit breaker and gypsy
- IP67 Rated Motor Gear Box
- Ingress protection cover offered as standard on the new VX2/3 windlass.
The New Cover Offers
- Silicone sealant free assembly
- Orientation flexibility - can be set by the end user
- Self-Certified to Ingress Protection level 67 to EN 60529
- Motor sizes: 1000W & 1500W
Dimensions & Weight

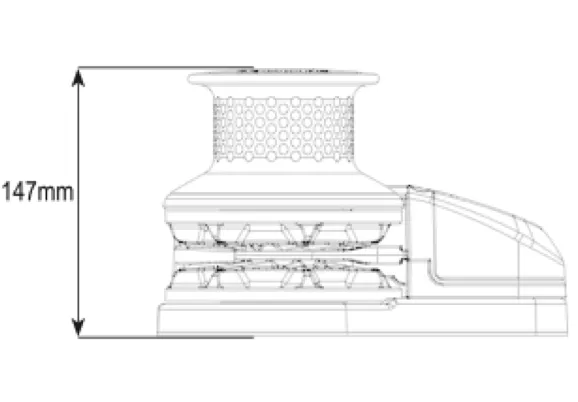

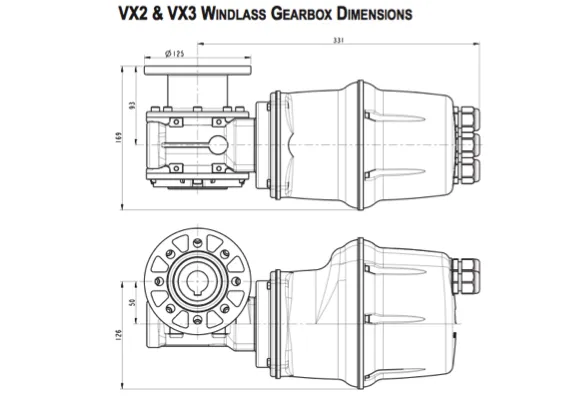

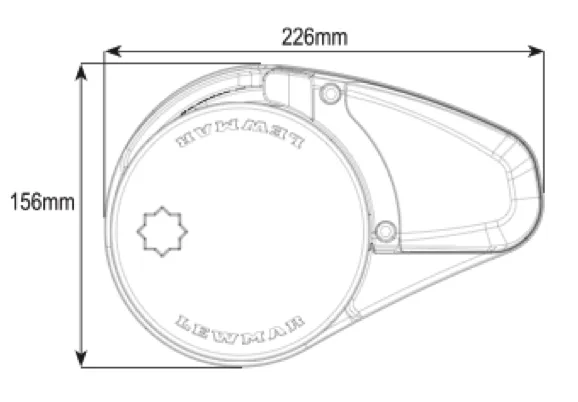

- Dimensions: See attached images
- Weight: 17.1 Kg
Models
- Lewmar Windlass VX2 GO 8mm Gypsy 12V 1000W Ext Kit
- Lewmar Windlass VX2 GO10 DIN Gypsy 12V 1000W Ext Kit
- Lewmar Windlass VX2 GO10 ISO Gypsy 12V 1000W Ext Kit
