PRISMA DRIVER 8IP™ is an easy to use 48VDC, IP65 protected, driver system which provides individual DMX-512 control including variable delayed time dimming modes for up to (8) PRISMA MINI UV LED series fixtures including the PRISMA MINI PAR 20™, PRISMA MINI PAR 45™ and the PRISMA MINI BAR 20™, and comes with 8x 4pin Connection Kits
Features
- Include a rugged IP65 housing
- Easy keyhole slots for wall and surface mounting
- Multiple DMX control modes an onboard 4 button touch control panel,
- 8x 4pin locking output sockets,
- DMX 5pin locking XLR in/out and locking power in/out.
- The Prisma Driver 8IP also comes with 8x 4pin Connection Kits included in the box
Specifications
- Rugged IP65 Housing
- Easy Keyhole Slots for Wall/Surface Mounting
CONTROL
- Multiple DMX Channel Modes
- Onboard 4 Button Touch Control Panel
- DMX-512 and RDM Protocol Support

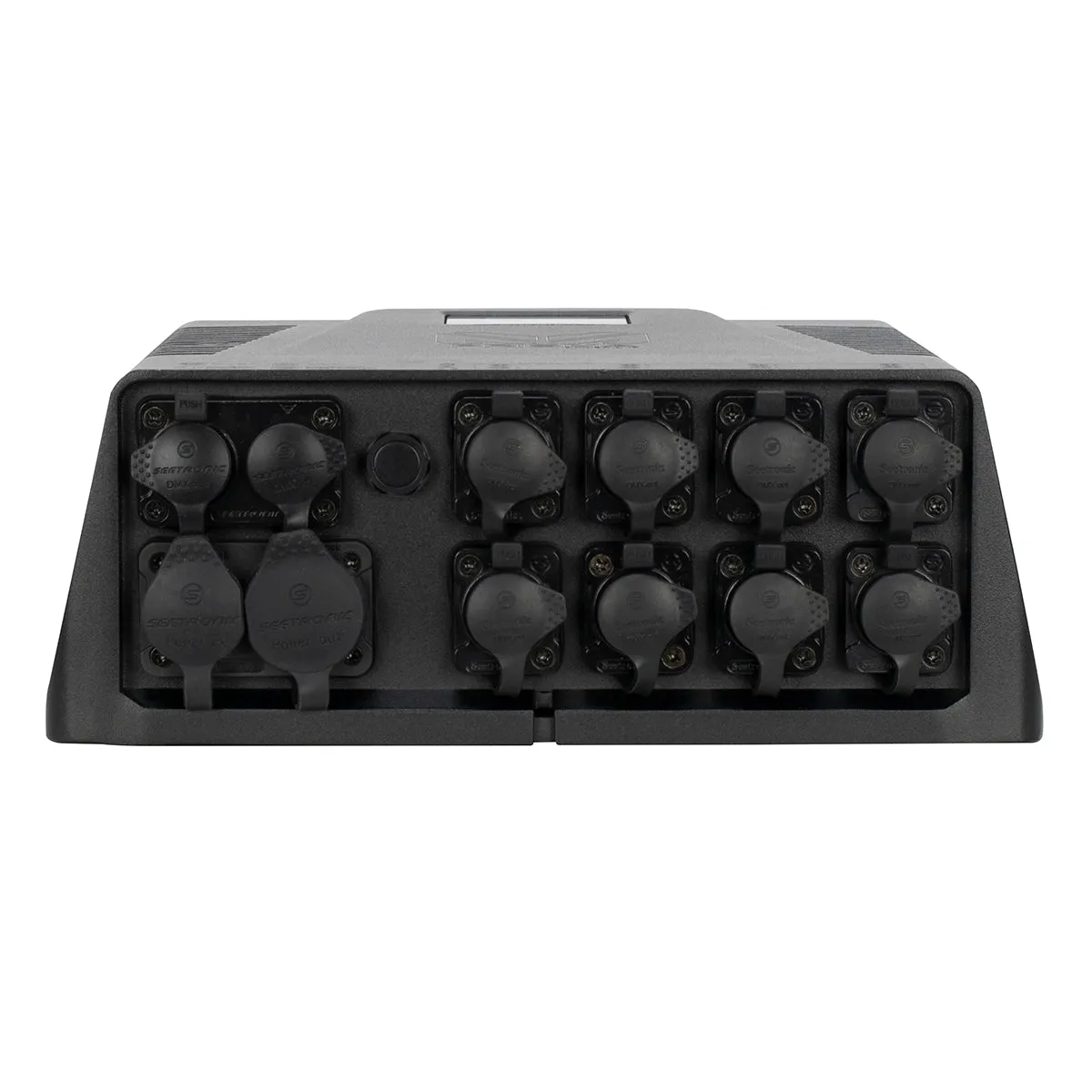

CONNECTIONS
- 8x 4pin locking output sockets (8 PRISMA MINI fixtures max)
- “Includes 8x 4pin Connection Kits”
- Locking 5pin XLR Connector In/Out
- IP65 Locking Power Connector In/Out
- With Wired Digital Communication Network
SIZE / WEIGHT
- Length: 9.0 in. (227.8mm)
- Width: 10.4 in. (264mm)
- Height: 4.2 in. (105.9mm)
- Weight: 8.05 lbs. (3.65 kg)
ELECTRICAL
- AC90-240V, 50-60Hz
- 48VDC 8.3A
- 167W Max Power Consumption
THERMAL
- Maximum Temperature (Ambient): 113° F (45° C)
- Minimum Temperature (Ambient): 14° F (-10° C)
APPROVALS / RATINGS
- CE | cETLus *Pending | IP65 (Temporary outdoor use only)
OPTIONAL ACCESSORIES
- STR501, STR514, STR527
- PIXEL BC2, PIXEL BC3, PIXEL BC5
- SIP064, SIP113, SIP126
- SIP1MPC10, SIP1MPC15, SIP1MPC25
