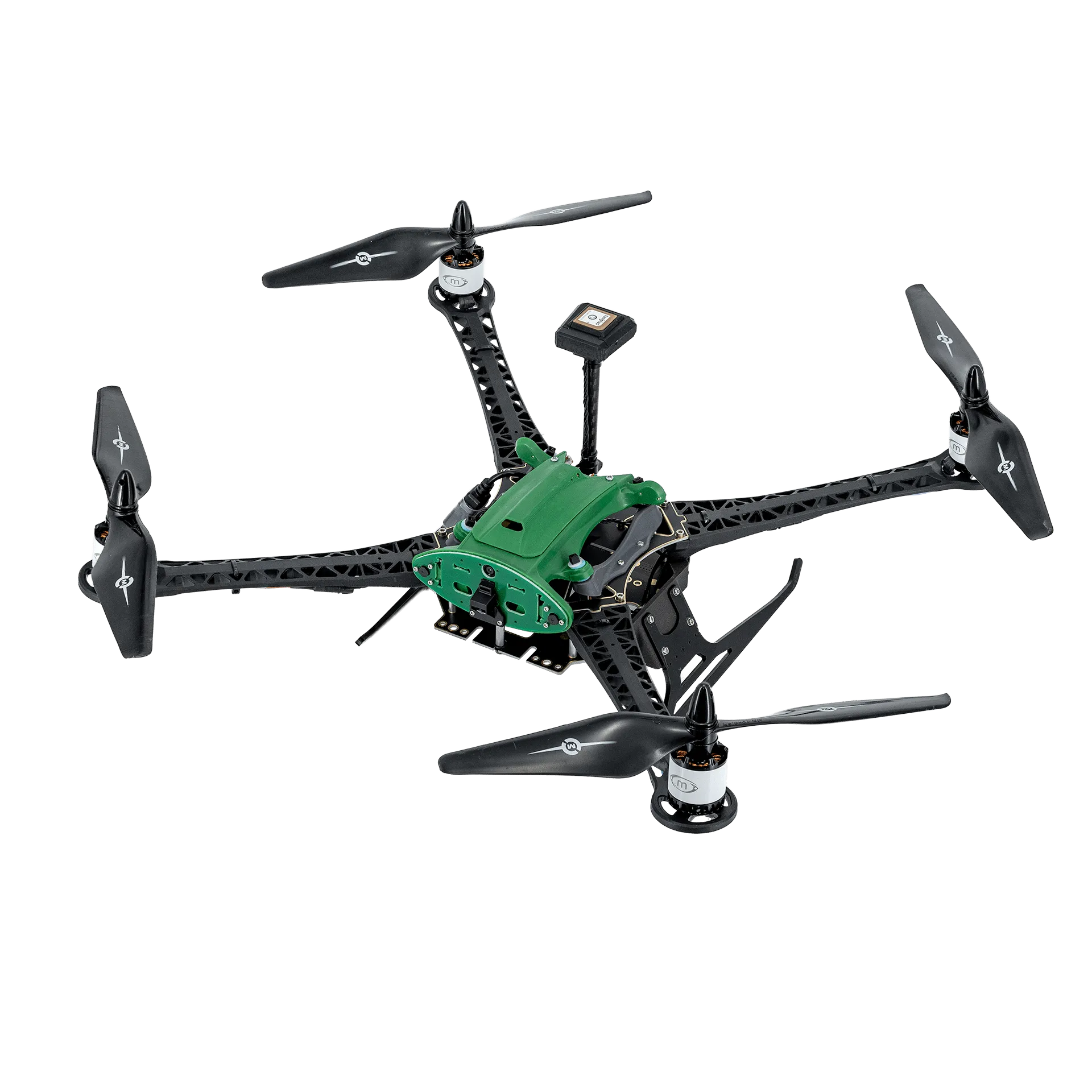

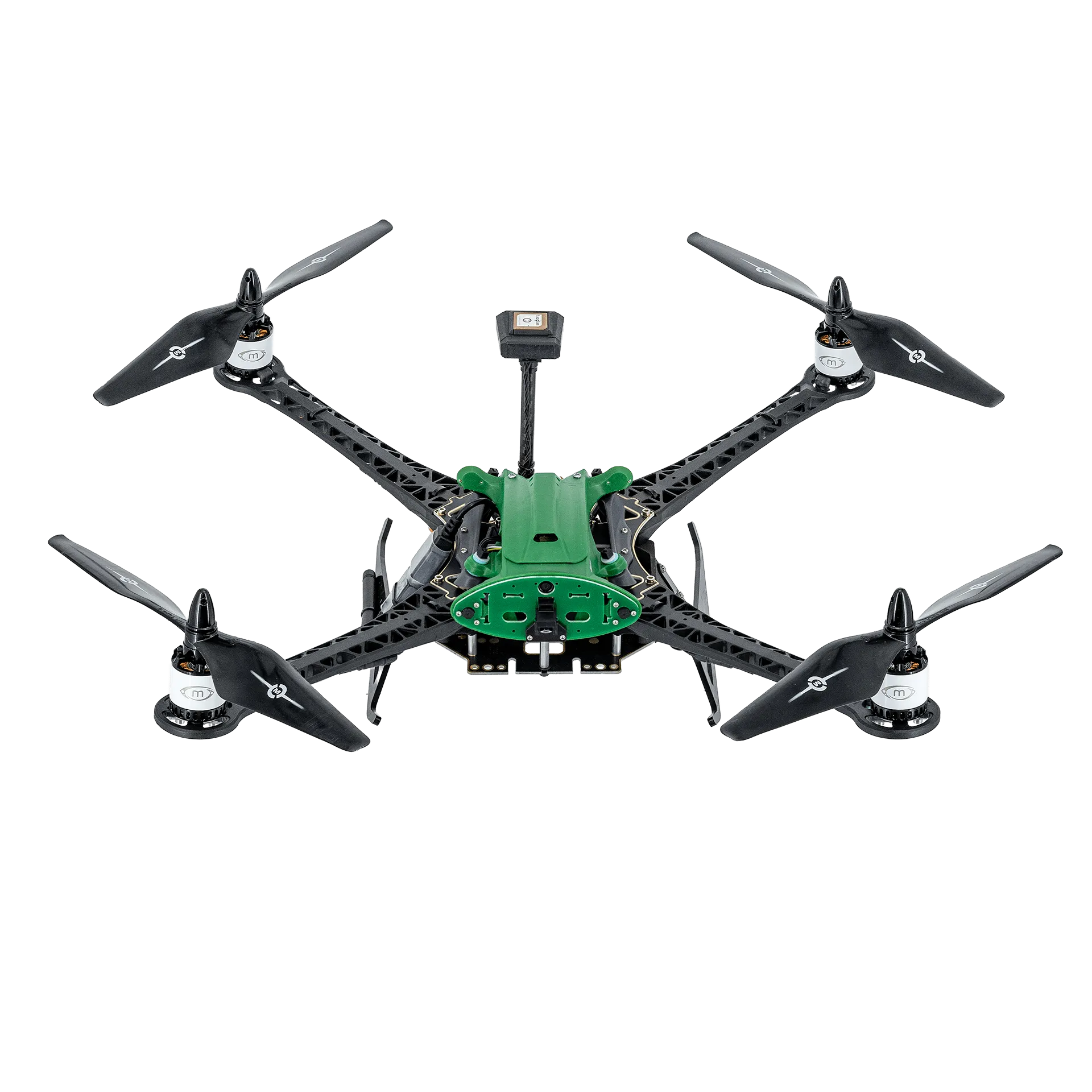

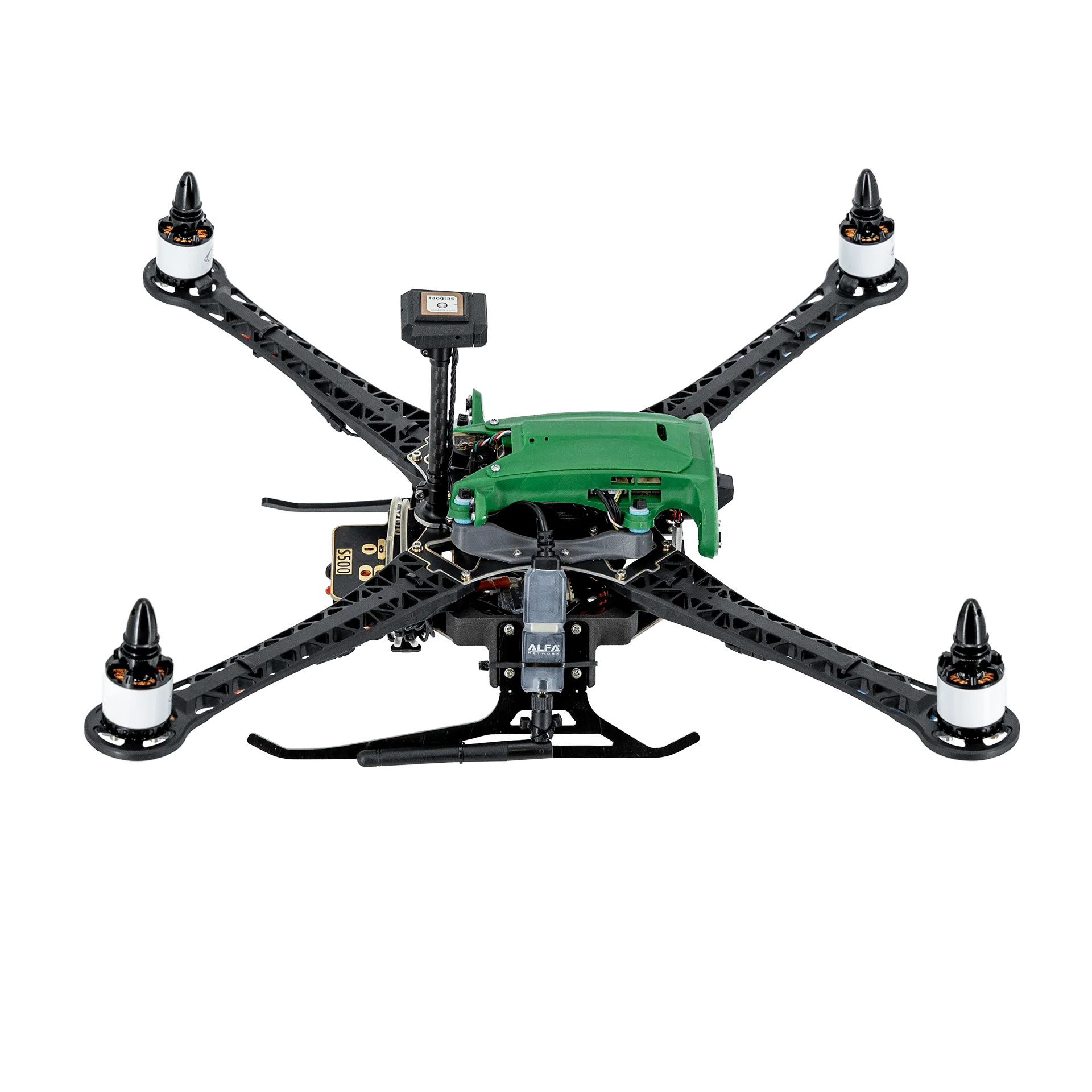

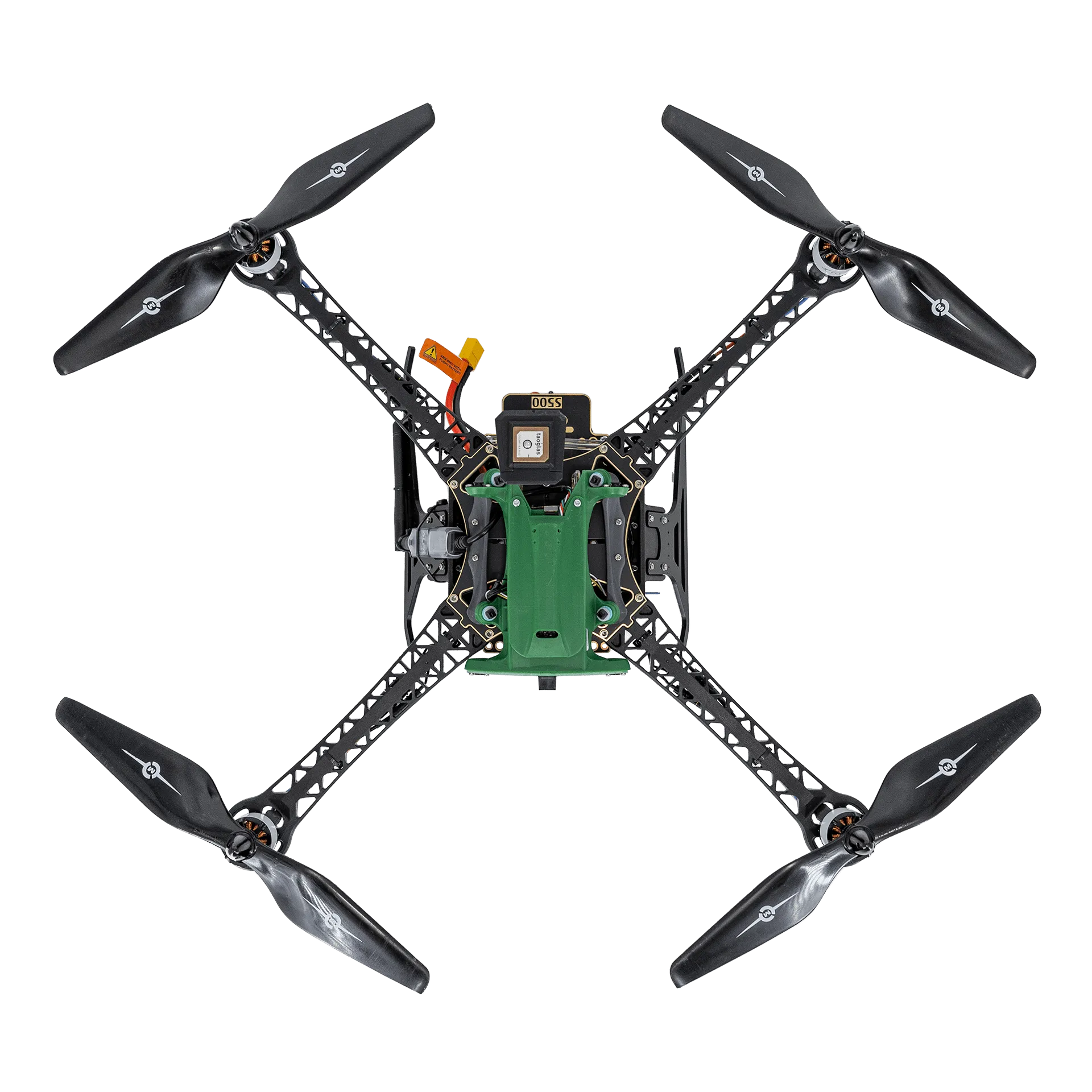

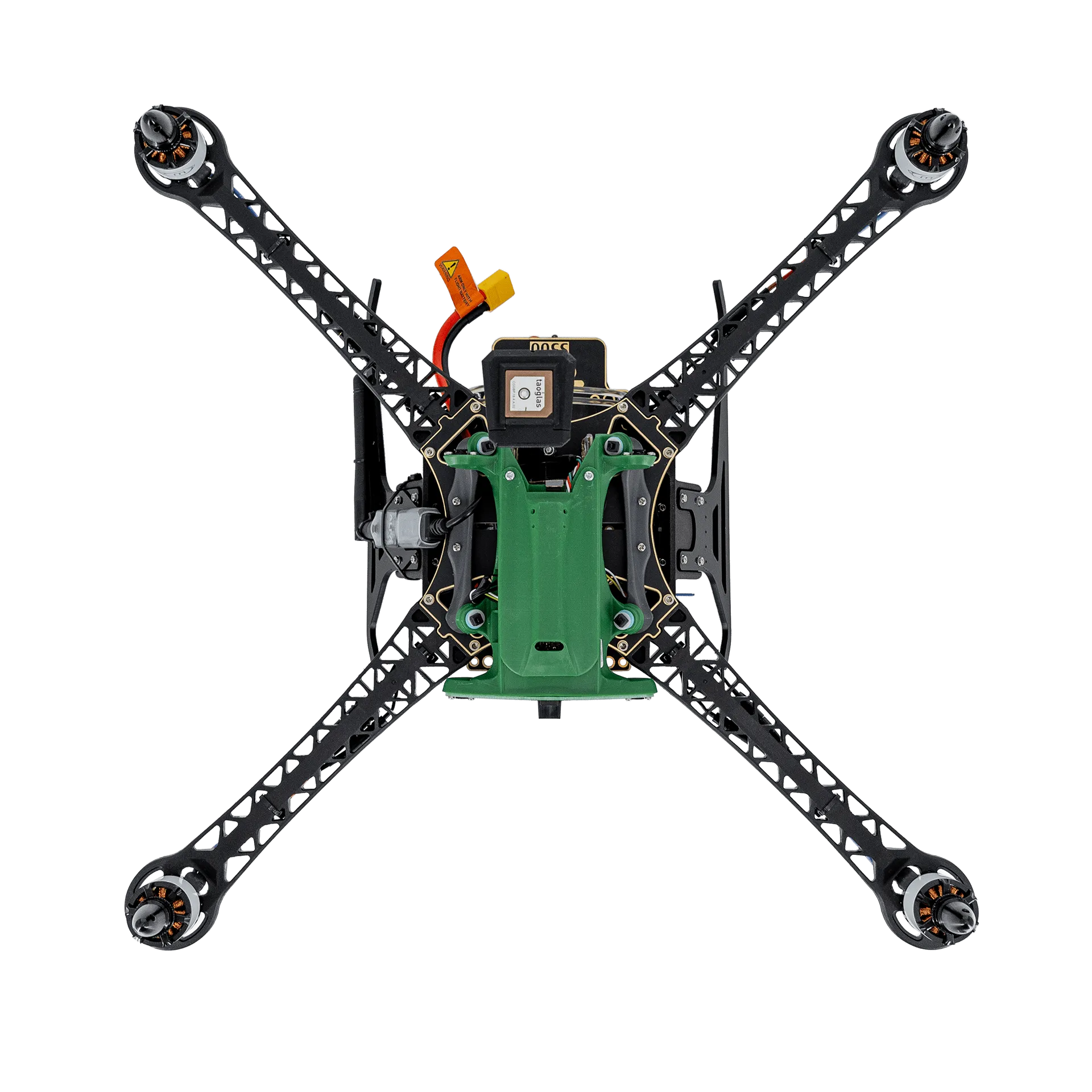

Name: VOXL<sup>&reg;</sup> 2 AI & 5G Development Drone - Sentinel
SKU: 363096

Product Details ＋

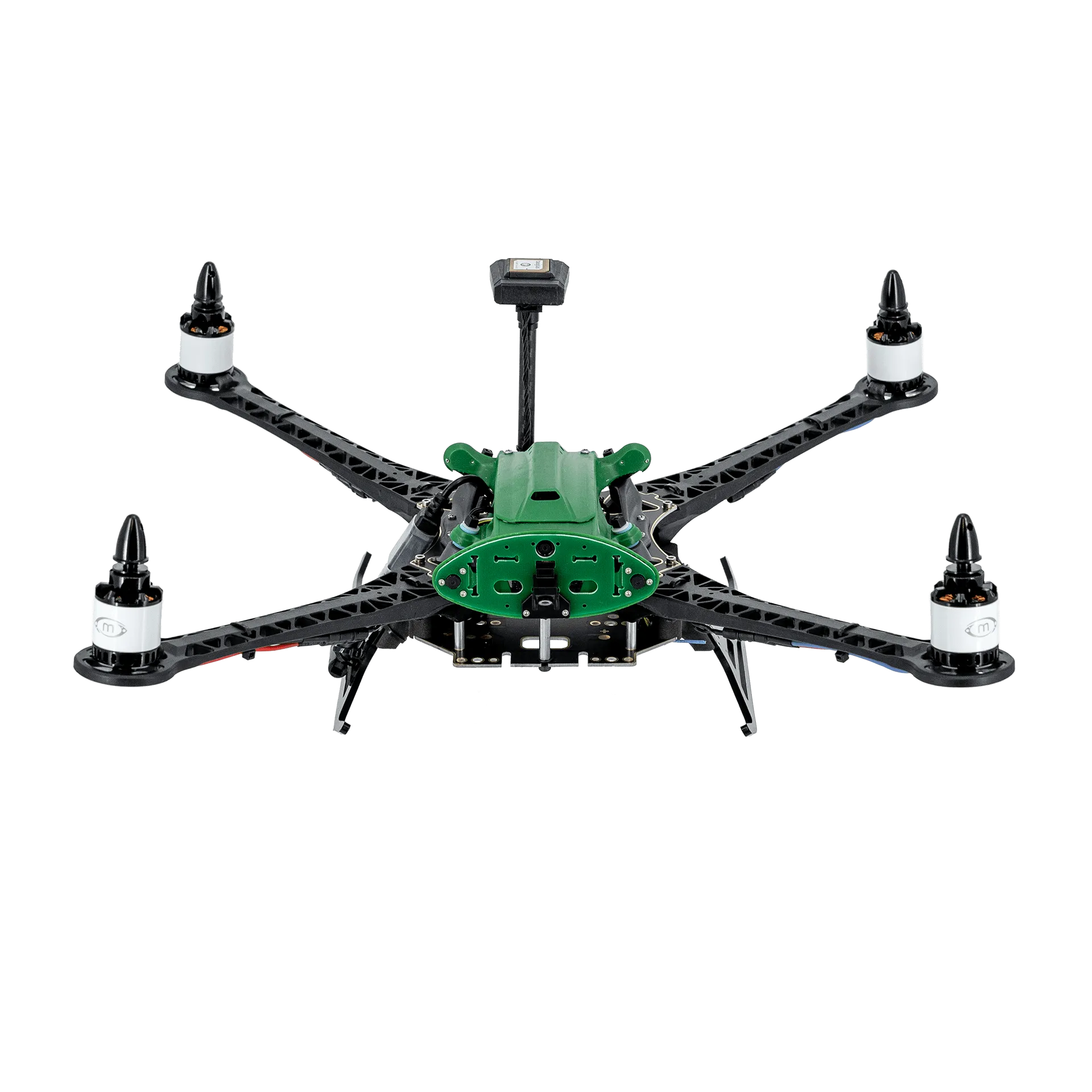

Ready to Fly Research & Development Drone with VOXL^® 2 Next Generation Blue UAS 2.0 Autonomous AI Autopilot

Sentinel is powered by Qualcomm^® Flight RB5 technology, featuring . VOXL 2 is the next generation Blue UAS Framework autopilot. At only 16g, VOXL 2 is the smallest single-board AI autopilot to date with premium tier processing from the Qualcomm QRB5165, a PX4 flight controller, advanced onboard AI and 5G connectivity.

Ready to Use Drone Development Tools

Powered by VOXL 2

16 grams, 70x36mm SWAP-optimized autopilot
Powered by Qualcomm QRB5165: 8 cores up to 3.091 GHz, 8GB LPDDR5
15 TOPS AI embedded Neural Processing Unit (NPU)
Integrated flight controller on DSP with TDK ICM-42688 IMU and ICP-10100 Barometer

Add On Options

1.8/2.3 or 2.4ghz point to point Microhard Modem
5G, 4G/LTE, Microhard add-on connectivity

Software Features

PX4, ROS 1 / 2, Debian Linux 9 (buster), Open CV, MAVROS, MAVSDK
Open Source Linux kernel, cross-compilers
Docker build environment for CPU, GPU (OpenCL) and DSP (Hexagon SDK) heterogeneous computer vision and deep learning processing

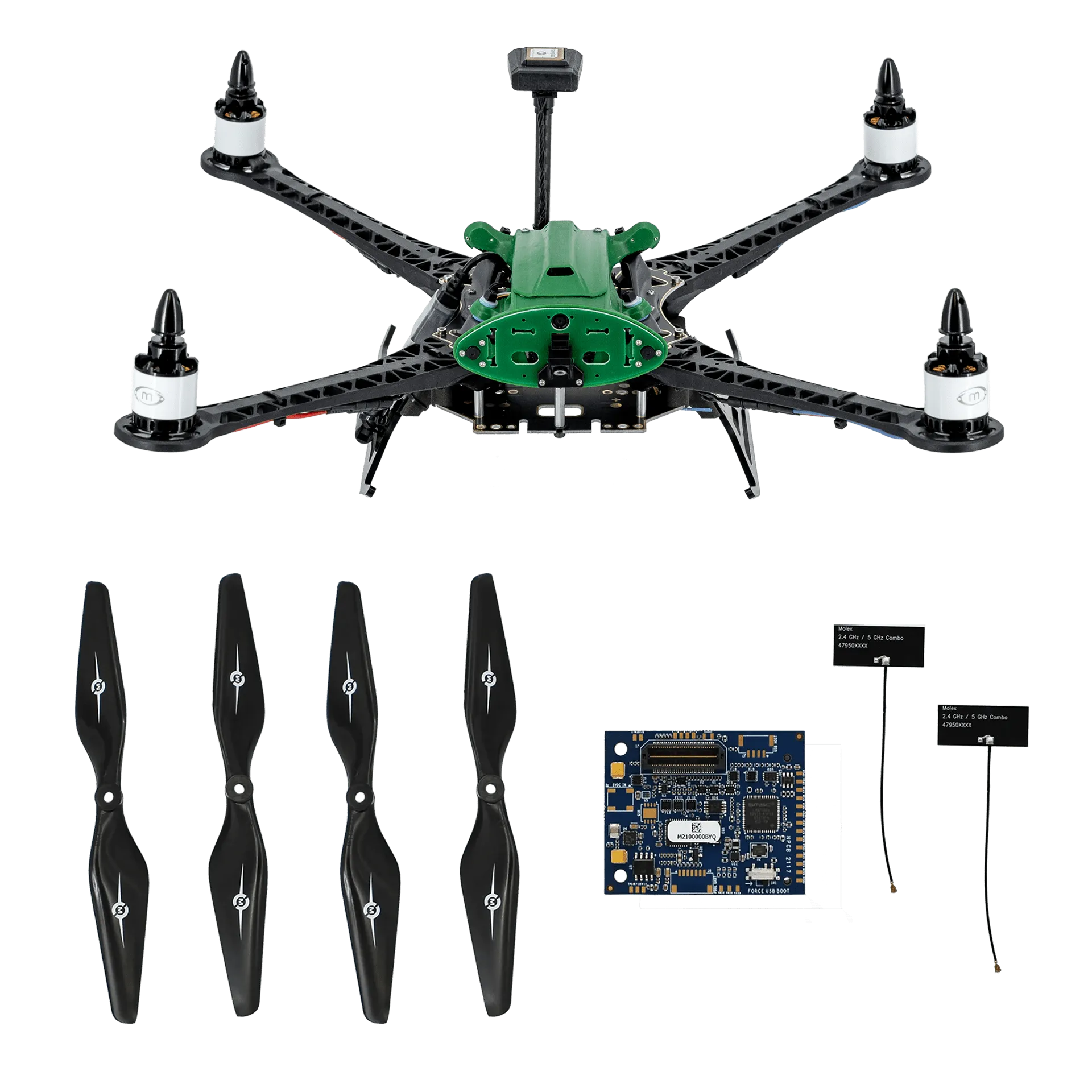

What's Included

Sentinel Version	SKU	Modem	Cost

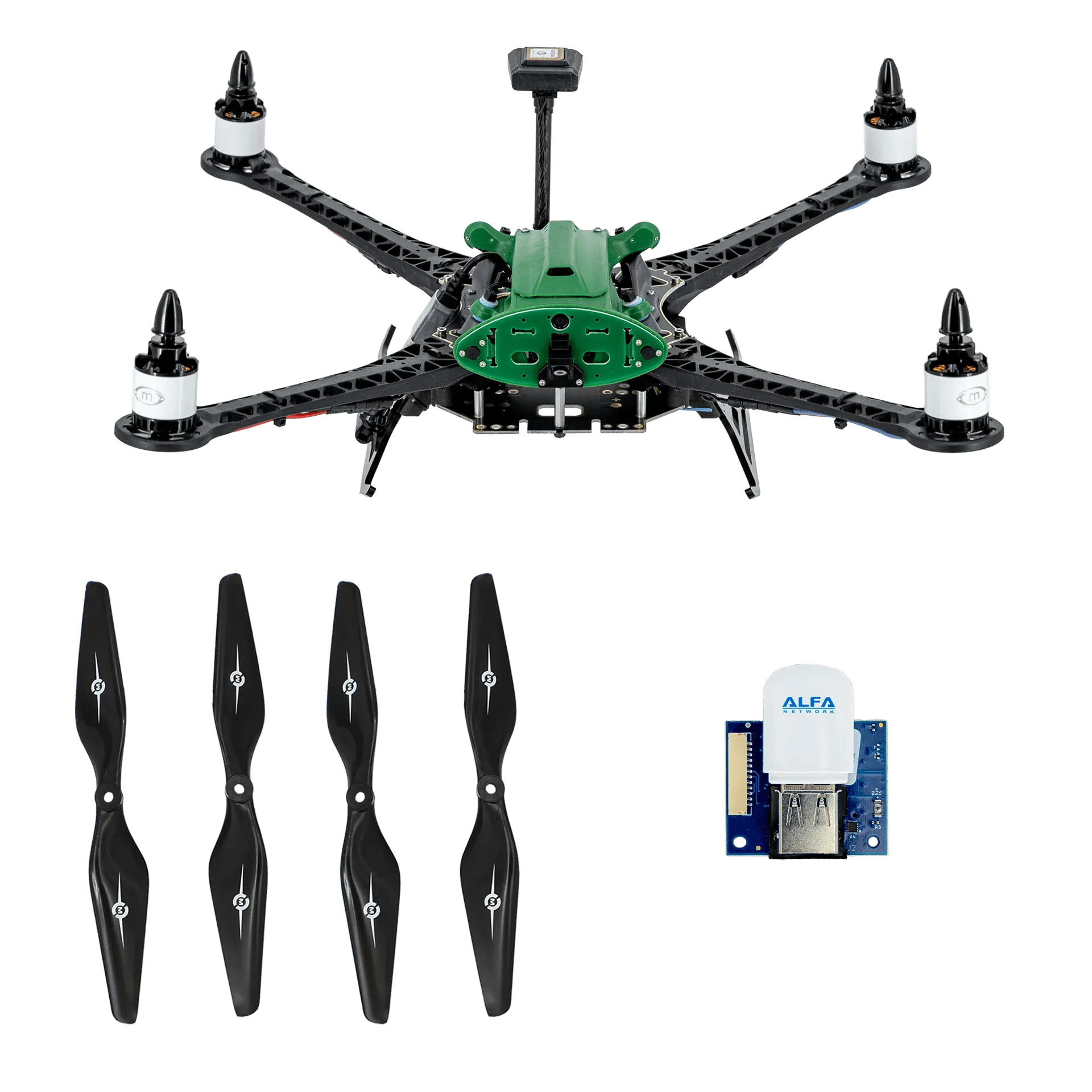

Base	MRB-D0006-4-V1.1-C11-M13-T7	WiFi Dongle 2.4GHz / 5GHz & ELRS 915MHz Receiver	$3,999.99
Point-to-point	MRB-D0006-4-V1.1-C11-M3-T7	Microhard Carrier (pDDL modem selected separately) & WiFi Dongle 2.4GHz / 5GHz & ELRS 915MHz Receiver	$4,299.99

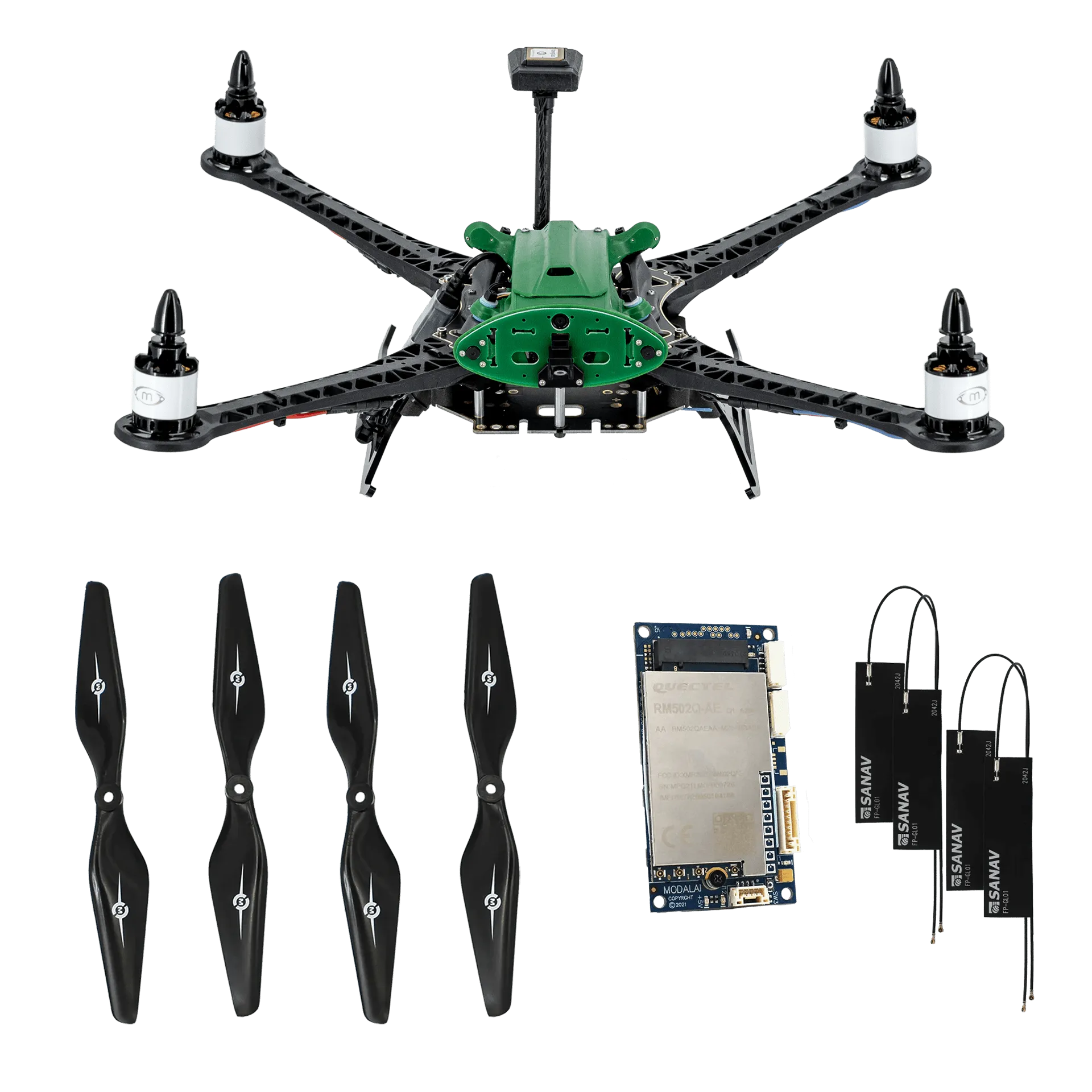

5G	MRB-D0006-4-V1.1-C11-M24-T7	5G Carrier and Sierra Wireless EM9291 & WiFi Dongle 2.4GHz / 5GHz & ELRS 915MHz Receiver	$4,999.99

Additional Items Not Included

R/C Transmitter
- -T1 SKUs work with transmitter (e.g. DX6e, SPM8000 or SPMR8000)
- -T7 SKUs work with transmitter programmed with ELRS 3.x
3S Battery Pack - Gens Ace 5000mAh
- Webstore
(Not Included) - ISDT Q6 Nano Lipo Charger/Discharger

IMPORTANT: Limit of (2) batteries per drone ordered for international shipments. Please email [email protected] for additional information.
