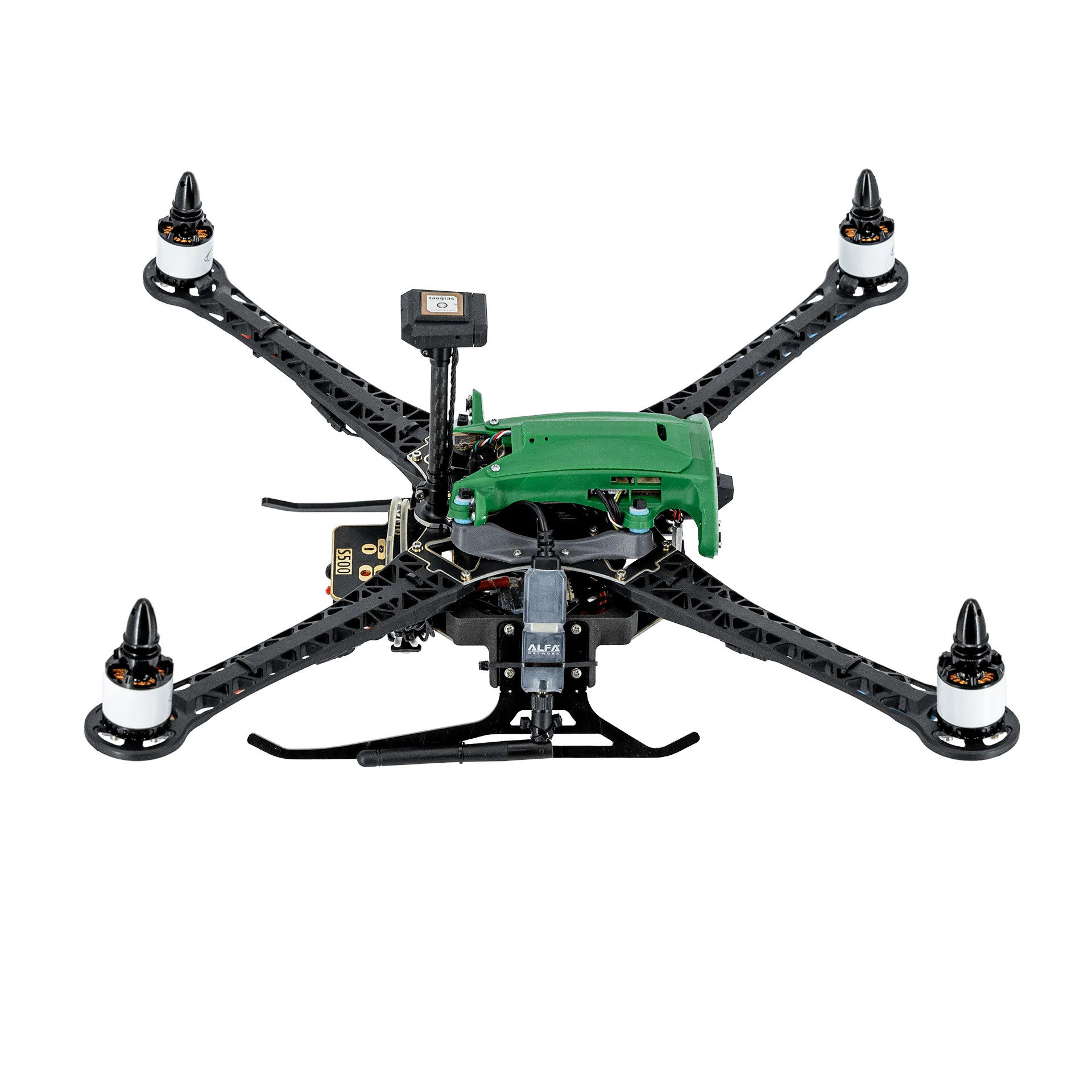

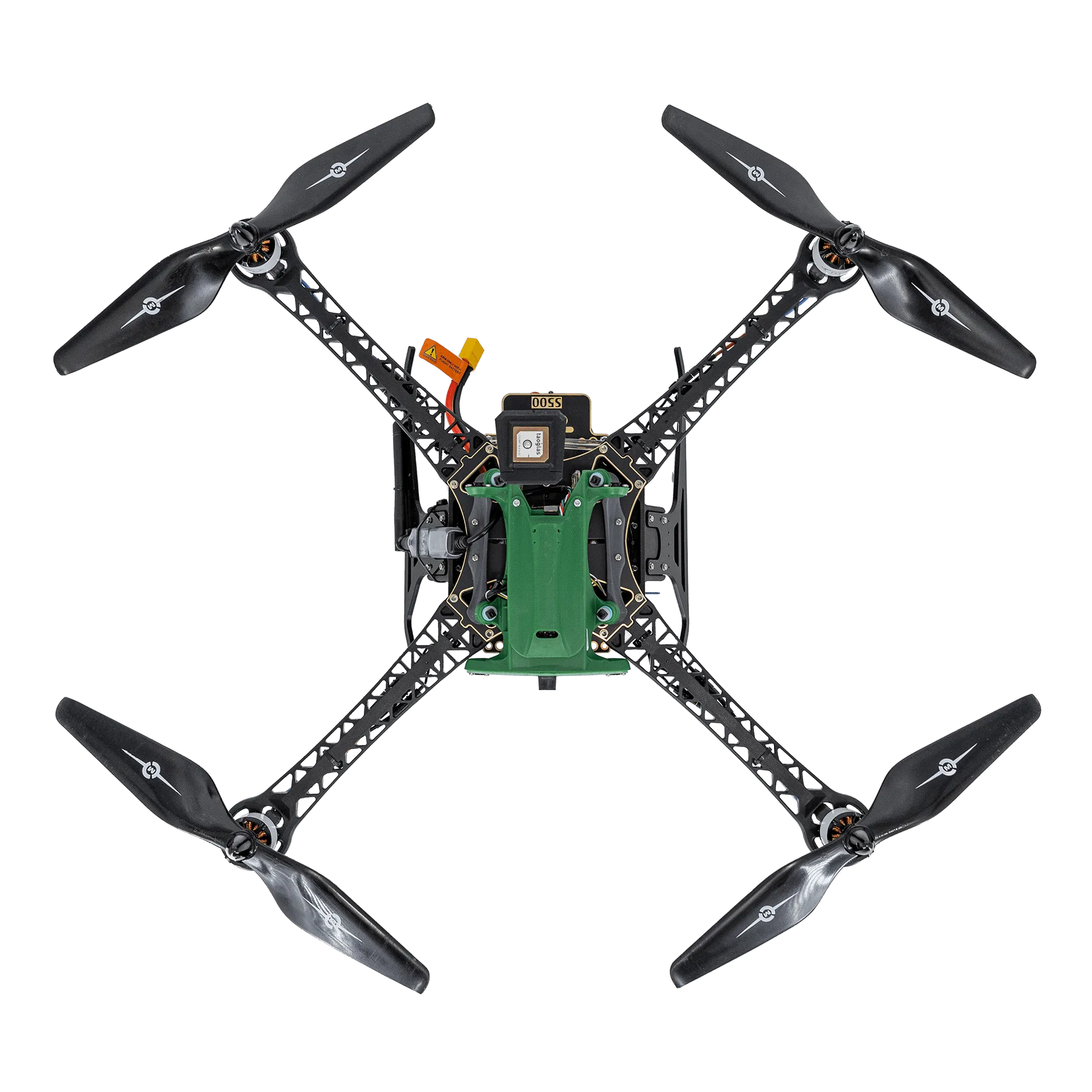

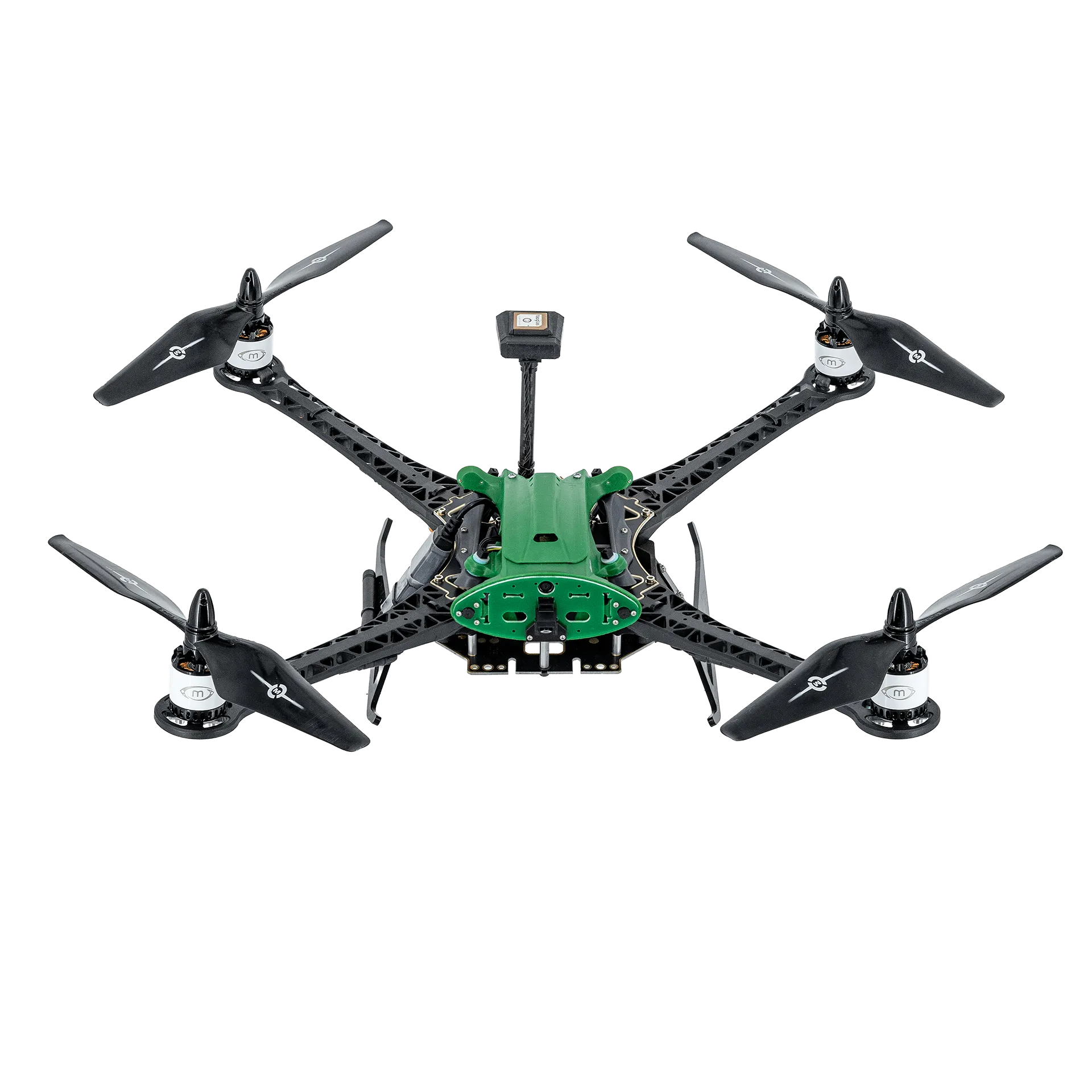

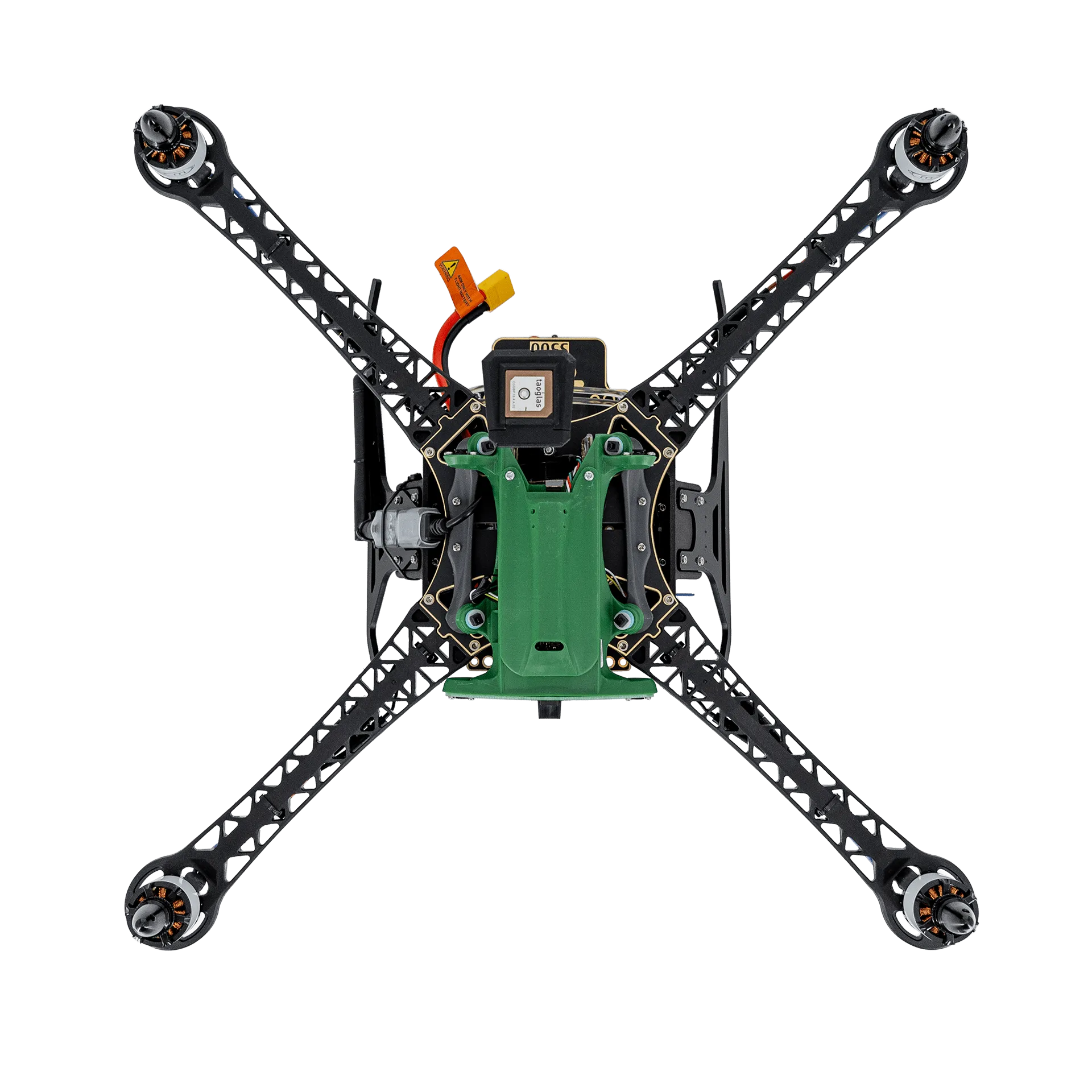

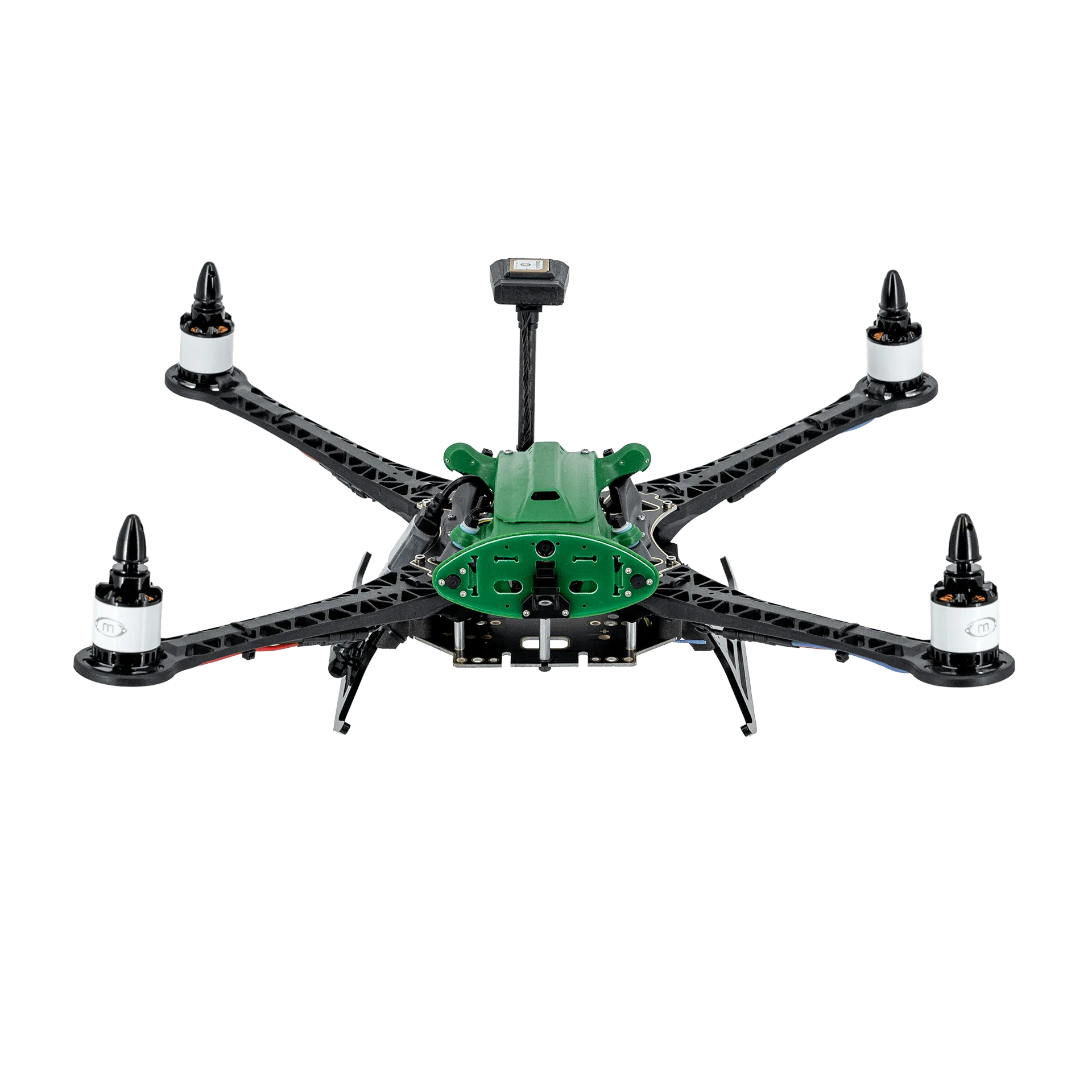

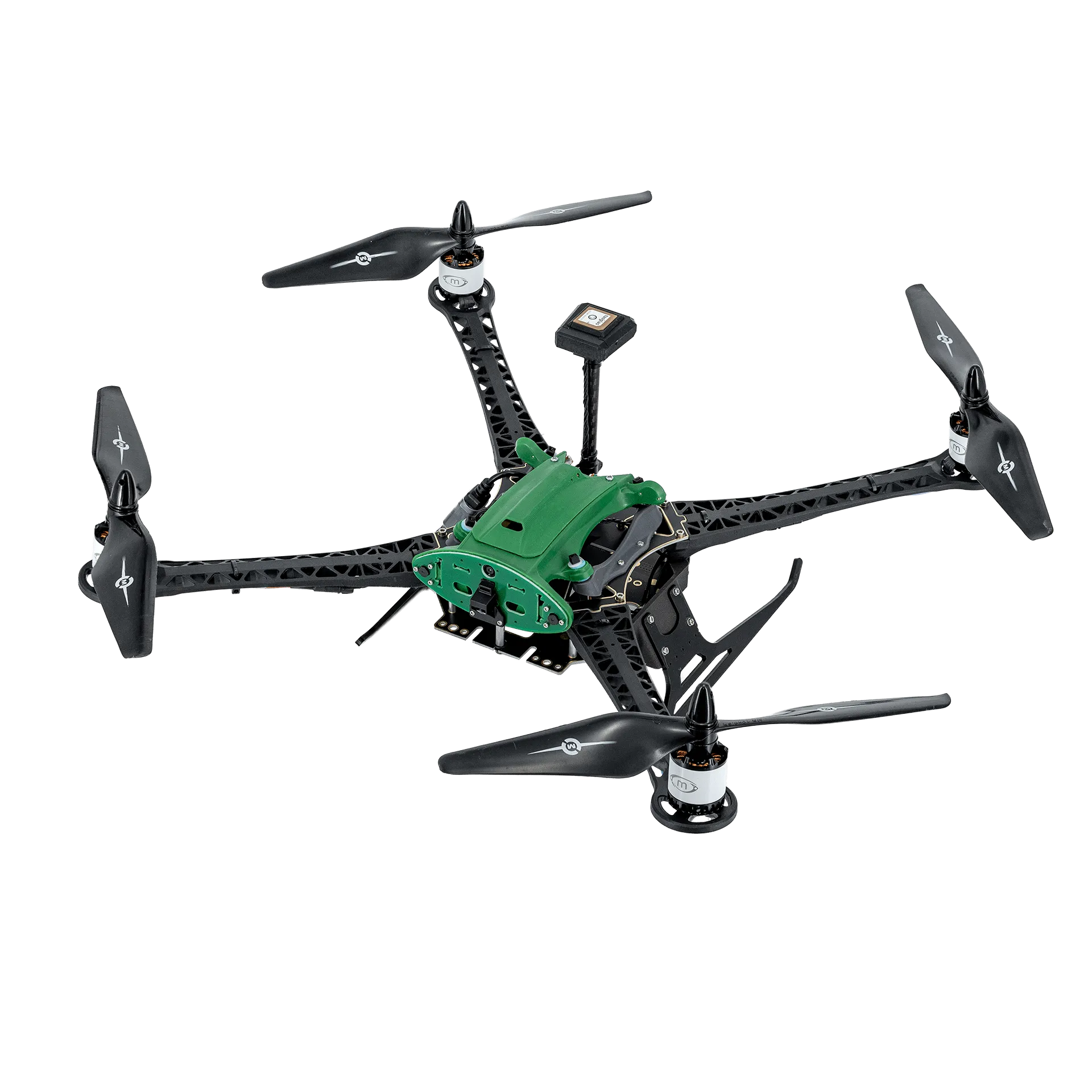

Ready to Fly Research & Development Drone with VOXL® 2 Next Generation Blue UAS 2.0 Autonomous AI Autopilot
Sentinel is powered by Qualcomm® Flight RB5 technology, featuring . VOXL 2 is the next generation Blue UAS Framework autopilot. At only 16g, VOXL 2 is the smallest single-board AI autopilot to date with premium tier processing from the Qualcomm QRB5165, a PX4 flight controller, advanced onboard AI and 5G connectivity.
Ready to Use Drone Development Tools
Powered by VOXL 2
- 16 grams, 70x36mm SWAP-optimized autopilot
- Powered by Qualcomm QRB5165: 8 cores up to 3.091 GHz, 8GB LPDDR5
- 15 TOPS AI embedded Neural Processing Unit (NPU)
- Integrated flight controller on DSP with TDK ICM-42688 IMU and ICP-10100 Barometer
Add On Options
- 1.8/2.3 or 2.4ghz point to point Microhard Modem
- 5G, 4G/LTE, Microhard add-on connectivity
Software Features
- PX4, ROS 1 / 2, Debian Linux 9 (buster), Open CV, MAVROS, MAVSDK
- Open Source Linux kernel, cross-compilers
- Docker build environment for CPU, GPU (OpenCL) and DSP (Hexagon SDK) heterogeneous computer vision and deep learning processing

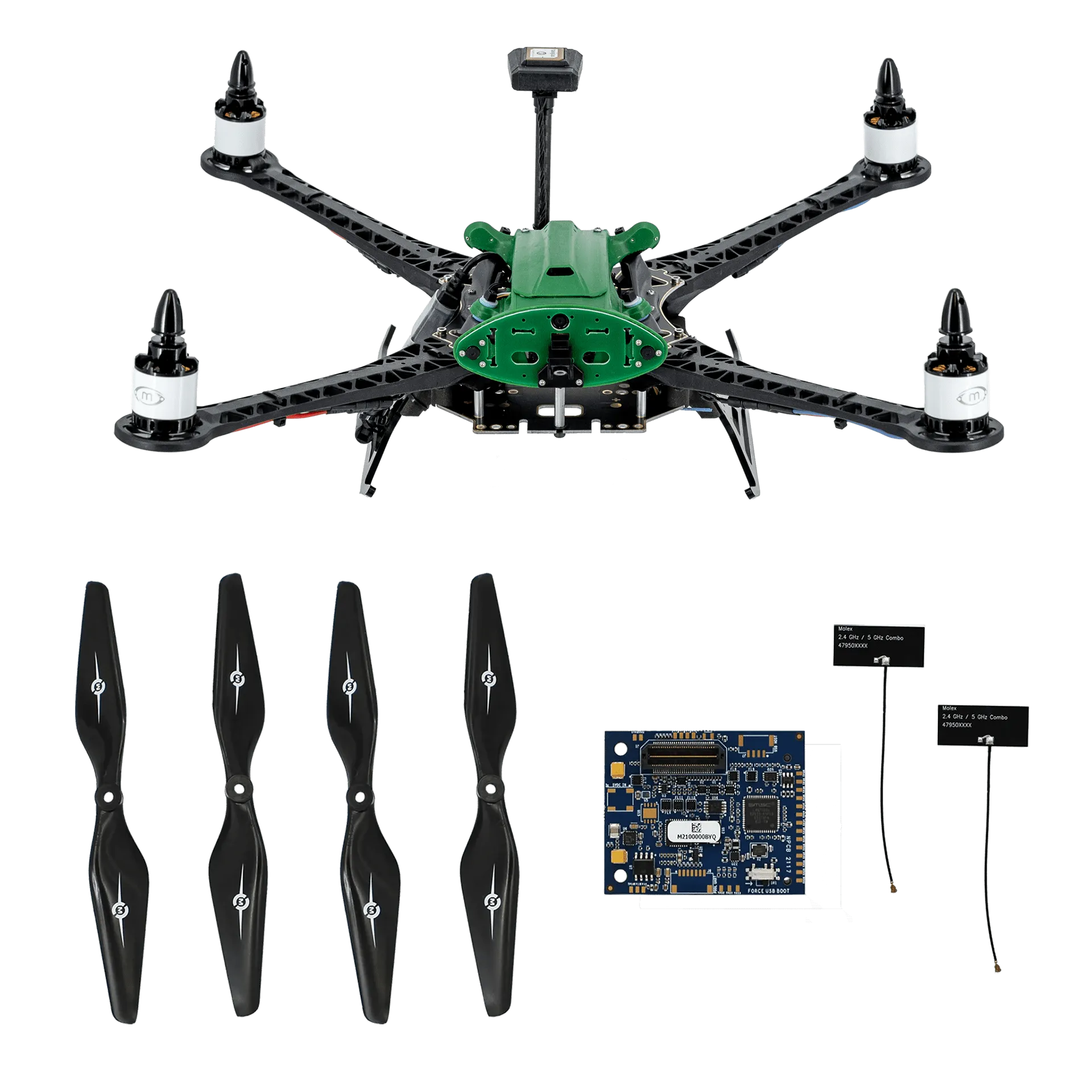

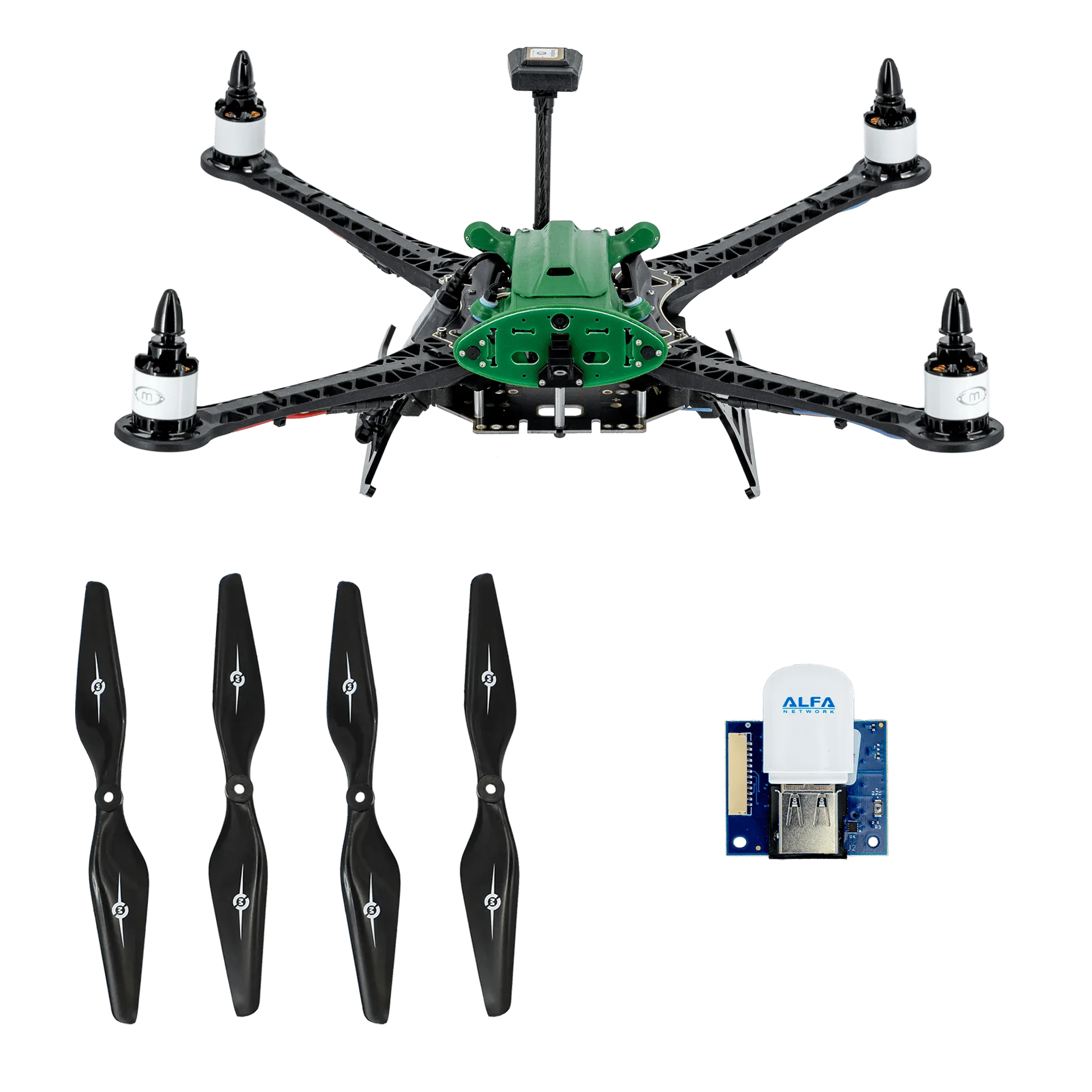

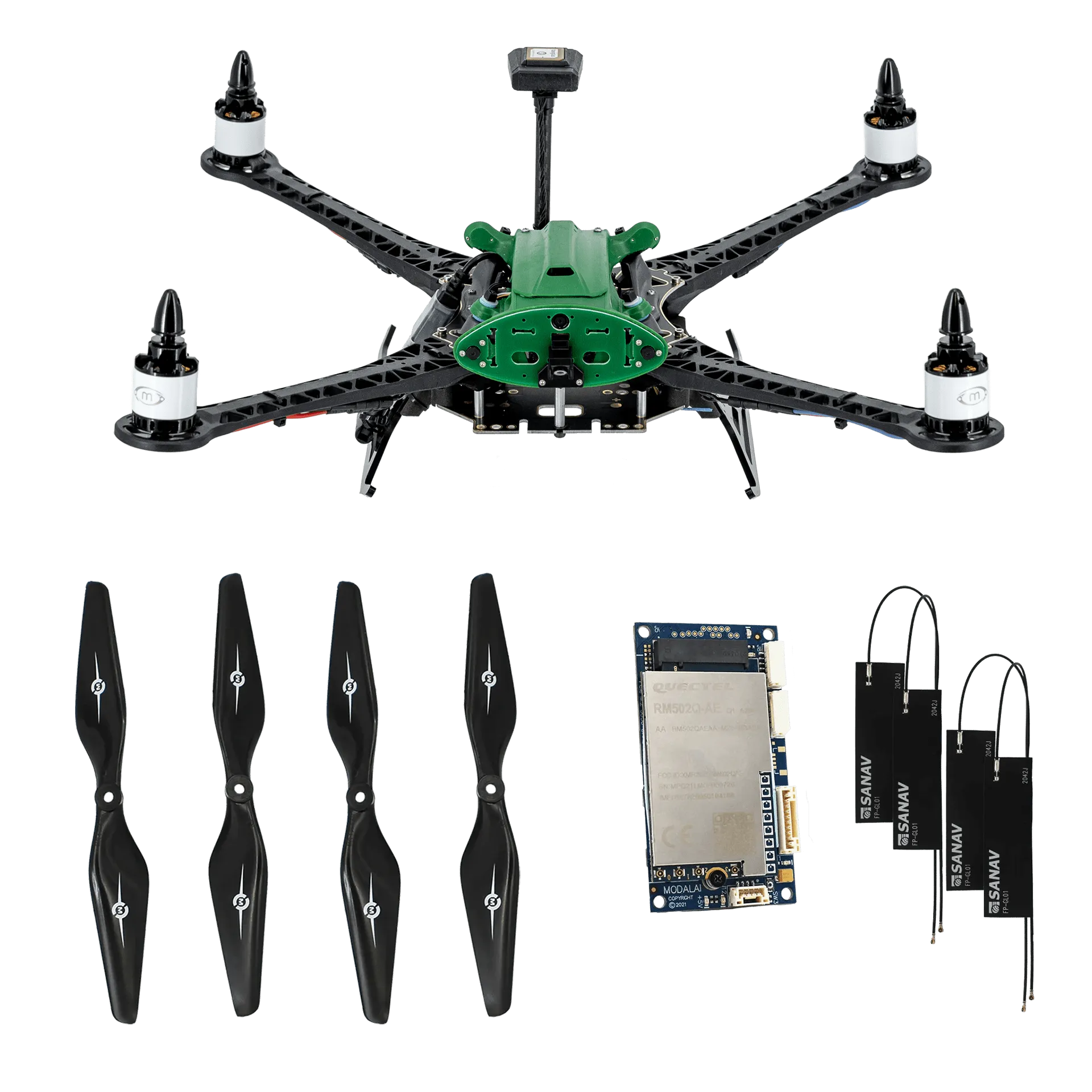

What's Included
Sentinel Version | SKU | Modem | Cost |
Base | MRB-D0006-4-V1.1-C11-M13-T7 | WiFi Dongle 2.4GHz / 5GHz & ELRS 915MHz Receiver | $3,999.99 |
Point-to-point | MRB-D0006-4-V1.1-C11-M3-T7 | Microhard Carrier (pDDL modem selected separately) & WiFi Dongle 2.4GHz / 5GHz & ELRS 915MHz Receiver | $4,299.99 |
5G | MRB-D0006-4-V1.1-C11-M24-T7 | 5G Carrier and Sierra Wireless EM9291 & WiFi Dongle 2.4GHz / 5GHz & ELRS 915MHz Receiver | $4,999.99 |
Additional Items Not Included
- R/C Transmitter
- -T1 SKUs work with transmitter (e.g. DX6e, SPM8000 or SPMR8000)
- -T7 SKUs work with transmitter programmed with ELRS 3.x
- 3S Battery Pack - Gens Ace 5000mAh
- Webstore
- (Not Included) - ISDT Q6 Nano Lipo Charger/Discharger
IMPORTANT: Limit of (2) batteries per drone ordered for international shipments. Please email [email protected] for additional information.
Technical Details
Export Information
Item | Value |
ECCN | EAR99 |
Harmonized Tariff Schedule (HTS) Code | 8542.31.3000 |
Country of Origin | USA |
Radio Frequencies Used | ELRS 915MHz Spektrum 2.4GHz |
